12S 180A Water Cooled RC Boat Esc Brushless Speed Controller Size 100*50*30mm For Boat
Basic information:
| Voltage | Current | Size(mm) | weight(g) | BEC (Volts/Amps) | Programming Box support | Computer Programming support | Firmware update | |
| |
| 3-12S | 180A | 100*50*30 | 295g | OPTO | Yes | Yes | Yes |
|
Feature:
Battery voltage 1S=4.2V.
The ESC firmware can be updated by the user.

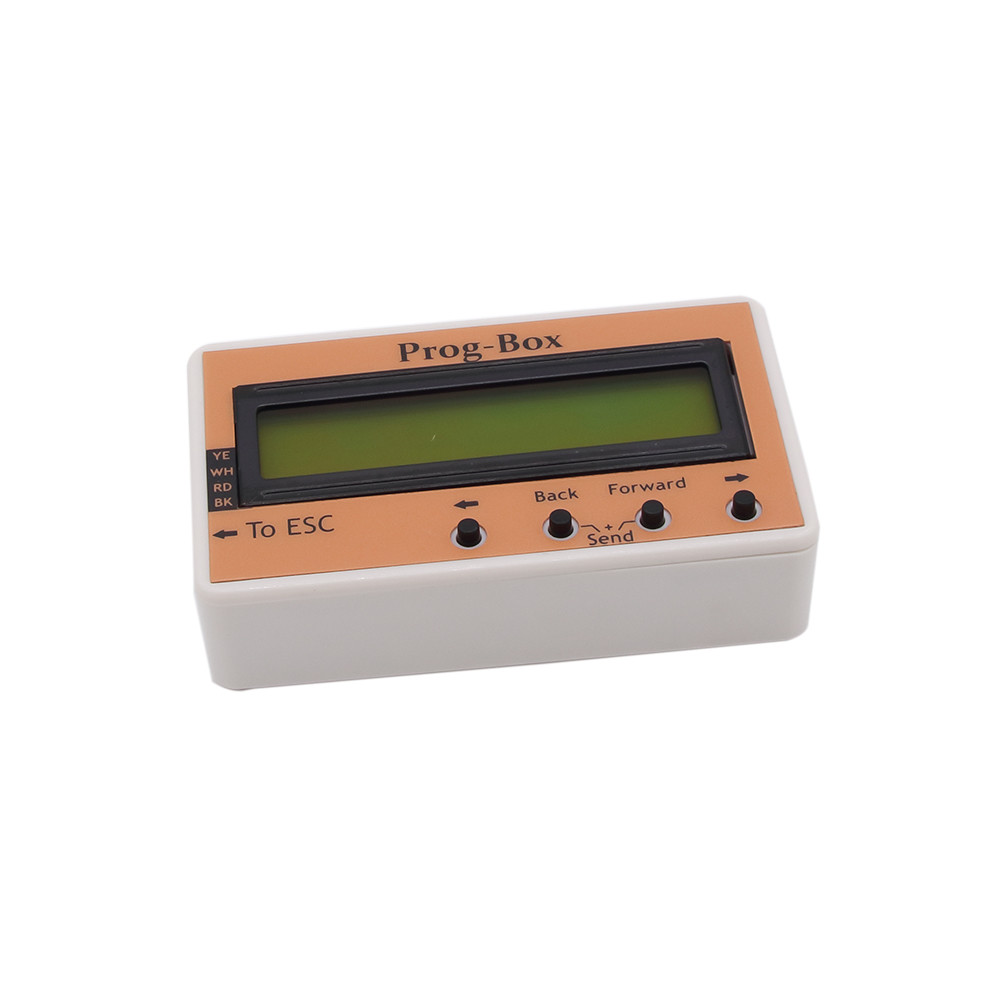

It can be connected to the programming box or connected to the computer through the USB cable, which is very convenient to set various parameters of the brushless ESC.
Single cell protection shutdown voltage, adjustable from 0.1V.
The motor advance angle is from 0 to 30 degrees and can be adjusted step by step.
The three types of throttle response curves can be set to different acceleration sensations.
With reverse function, and reverse delay time is adjustable.
With forward/reverse power limit function
Li-MH/Li-Pofrom 2.0-3.6V, Ne-Cd/Ne-0.4-1.0V, LiFefrom 2.2-2.8V.
It has automatic throttle detection and manual setting of a fixed value function.
Over temperature protection 110 ° C.
The remote control signal is automatically turned off after 3 seconds of loss.
Setting function value:
1. Reverse: On/Off.
2. Timing:0°,1°,2°,3°,4°……30°.
3. Frequency: 8KHz, 16 KHz, 32 KHz.
4. Acceleration: Soft / Medium / Hard.
5. Accumulator type:NiCd/NiMh,Li-Ion/Li-Pol,LiFe.
6. NiCd/NiMH CUTOFF:×0.05,0.4V,0.5V,0.6V,0.7V,0.8V,0.9V,1.0V.×0.05 means the cut off voltage is 5% the voltage while connecting.
7. Number of cells:Auto,2S,3S,4S,5S,6S,7S,8S,9S,10S,11S,12S,16S.
8. LiIo/Pol CUTOFF:2.0V,2.1V,2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V,2.9V,3.0V,3.1V,3.2V,3.3V,3.4V,3.5V,3.6V.
9. LiFe cutoff:2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V
10. Cut Off Type::Slow down,Hard. l
11. Power limited forward: Off, 75%, 50%, 25%.
12. Power limited reverse: Off, 75%, 50%, 25%.
13. Delay time when direction convert: 0.25S, 0.5S, 0.75S, 1S, 1.5S, 2S, 3S, 5S.
14. Reverse point:Auto,fixed 1.0mS,fixed 1.1mS,fixed 1.2mS,fixed 1.3mS.
15. Forward point:Auto,fixed 1.7mS,fixed 1.8mS,fixed 1.9mS,fixed 2.0mS.
16. Throttle curve: Logarithmical,Linear,Exponential.
17. Rotation direction: Left, Right.
18. Timing monitor (TIMING MONTITOR): ON, Off.
Note:the red mark is the factory default value,you can setting function value by youself.

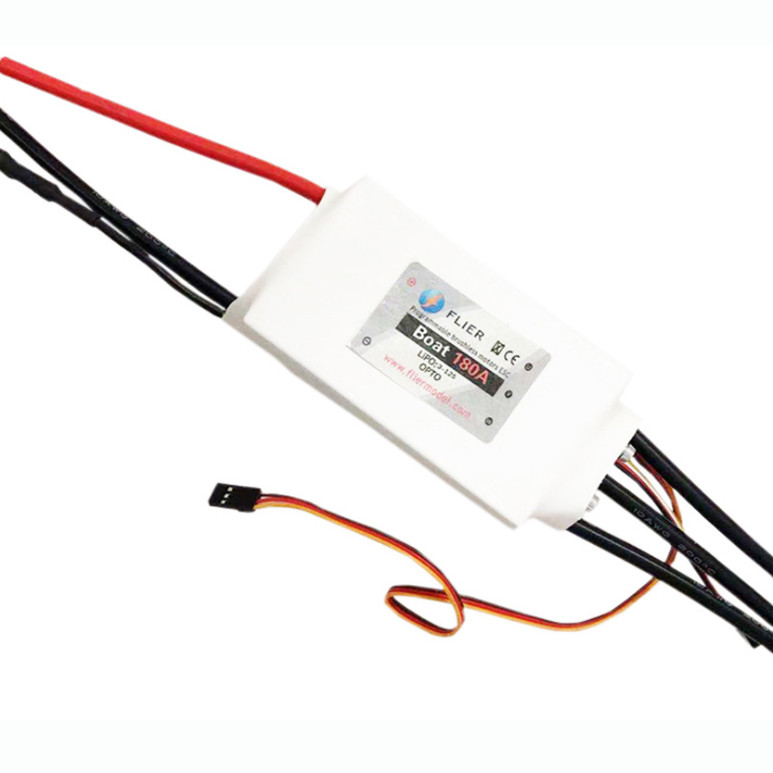

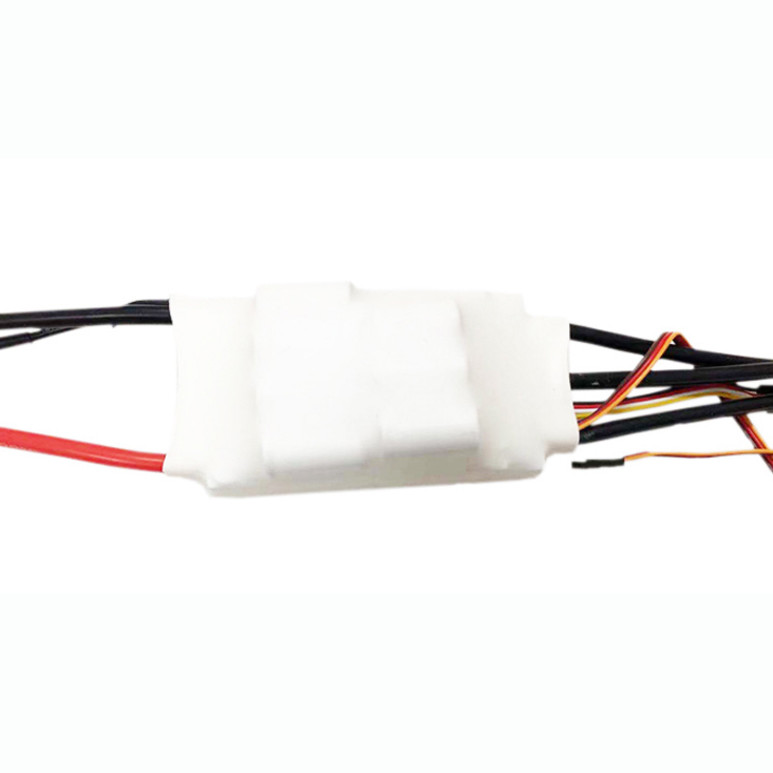

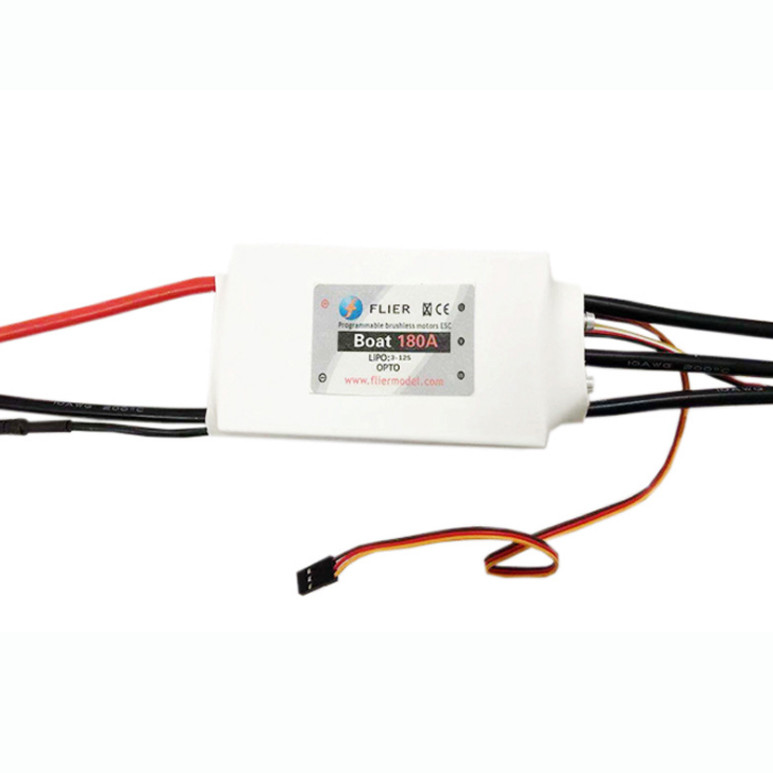

Products Picture:
Trade Terms:
1.Payment :T/T ,Paypal,West union .
2.Production lead time :5 days for 100-200 pcs ,10days for 200-300pcs .
3.Sample can be delivered within 3 days.
4.Discounts are offered based on order quantities .
5.MOQ: 2 pcs.
Shipping&Return:
1. Items will be shipped within 3 business day after payment completed received.
2. Items are shipped from DHL Express ,UPS ,EMS,, reach most of the countries within 3-7 days respectively.
3. Warranty Period is 2 yrs for this item.
4. If product can not work, or find it as defects within in 7 days after receipt, please contact us, we will replace or refund.
5. All emails will be answered within 1 working day.
Product Tags:
|
|
12S PCB CE 180A RC Boat Esc Water Cooled Firmware Update For PCB Images
|
